Description
Product introduction：

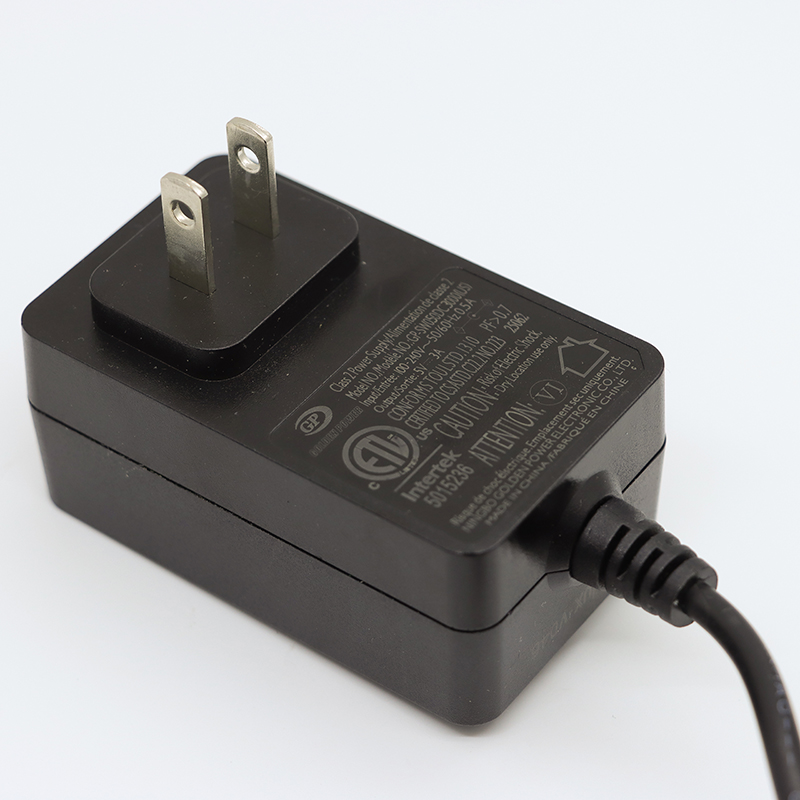

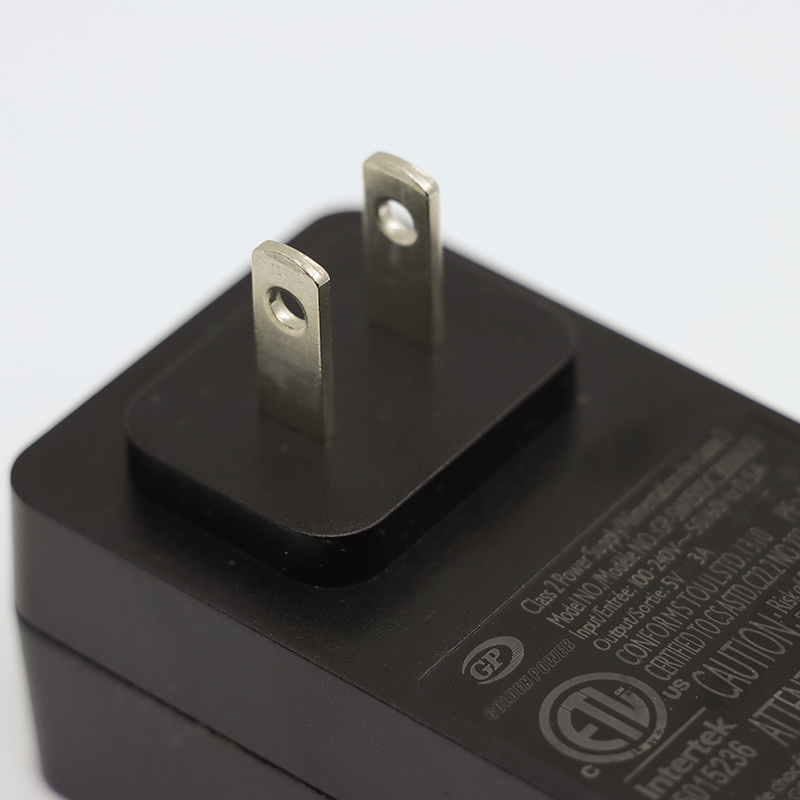

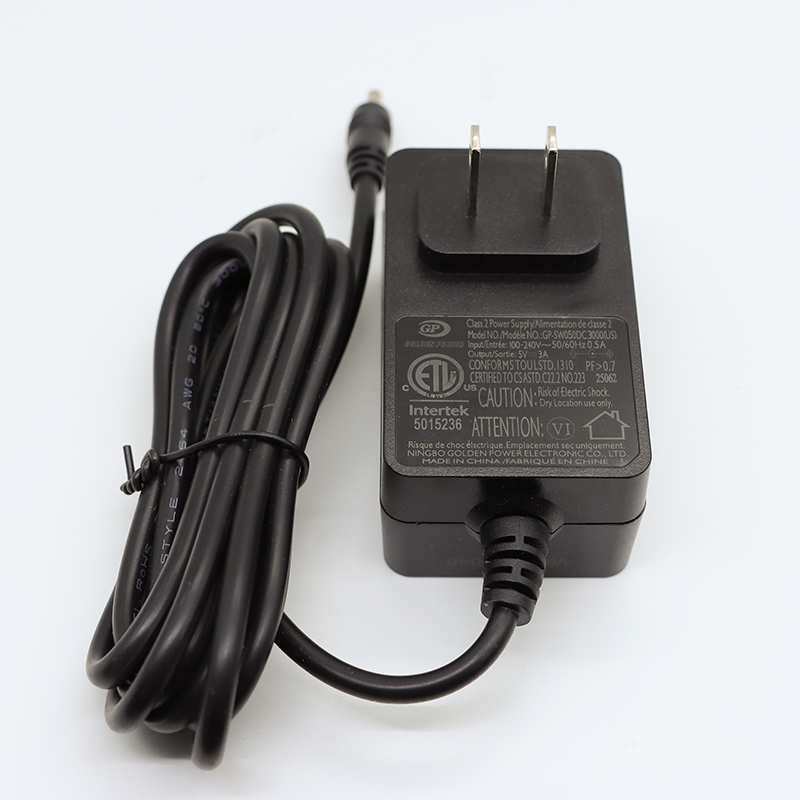

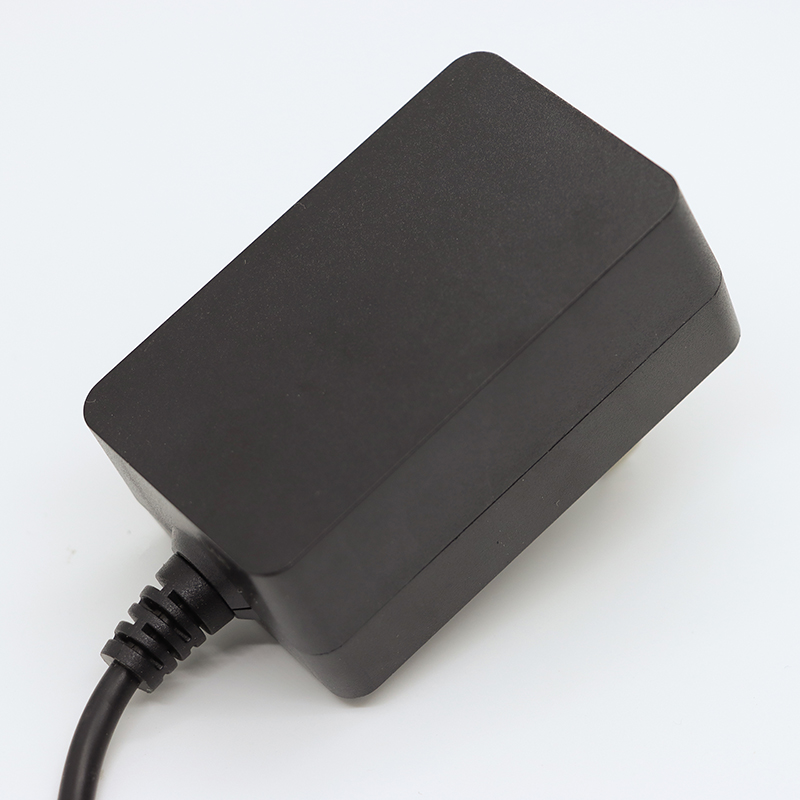

24W series UL/CUL horizontal switching power supply, in line with UL American switching power supply, CUL Canadian switching power supply certification standards, with overload protection, overvoltage protection, constant voltage function, constant current function, products are mainly used in lamps, fitness equipment, Small household appliances, battery charging, motors and other fields.
Specifications:
Model | GP-SWXXXDCXXXX(US),IP20 SERIES |
Input Voltage | 120V~ |
Input Frequency | 60Hz |
Output Voltage | 5-36V |
Output Current | 20-4800MA |
Output Power | 24W Max |
Special Function | OCP,SCP |
HIPOT Testing | 2000Vac/5mA/Min |
Ac Pin Type | US |
Mean Time Between Failures | 50,000 HOURS AT FULL LOAD AND 25°C AMBIENT |
Application | CLASS 2 POWER UNIT |
Safety Certification | UL 1310:2018 Ed.7;[CSA C22.2#223:2015 Ed.3 |
Safety Regulations And Electromagnetic Interference Standards | FCC Part 15, Subpart B,Class B ANSI C63.4 2009 IC Regulation ICES-005;lssue 5, Class B ANSI C63.4-2014 |
Energy Efficiency Standards | VI |
Output Method | CORD |
Protection Index | IP20(Indoor use) |
Burn-In | 100% Full Load Burn in |
Operating Temperature | -40~40℃ |
