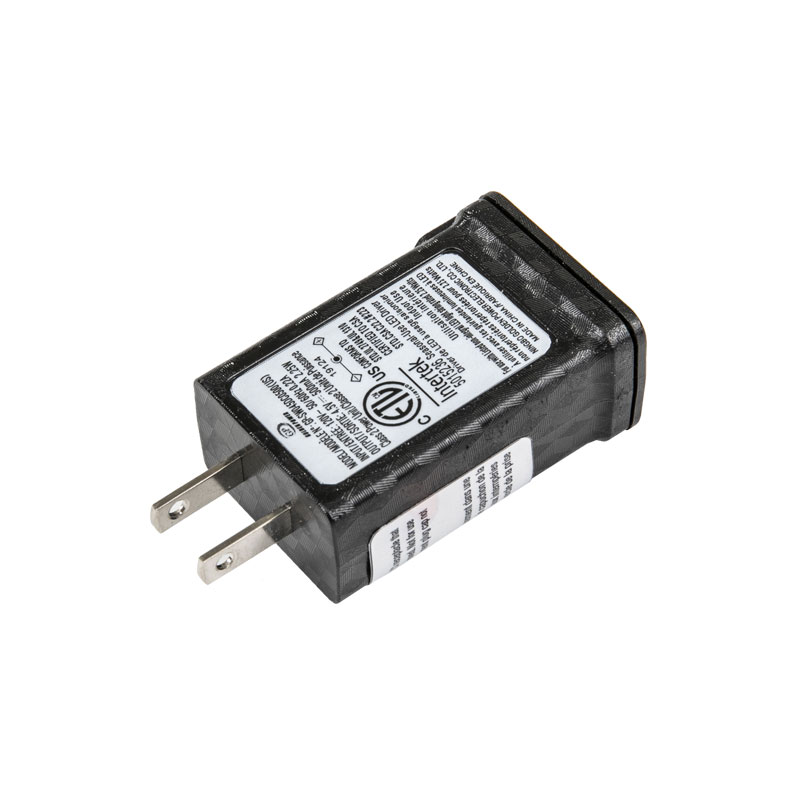

GP-SWXXXDCXXXX(US),IP20 SERIES

0
Views: 948
Contact Us

Product Details

Product introduction:

6W series UL / CUL vertical switching power supply, in compliance with UL American switching power supply, CUL Canadian switching power supply certification standards, with overload protection, overvoltage protection, constant voltage function, constant current function, the product is mainly used in small household electrical appliances, communications Field, battery charging, motor and other fields.



Specifications:

Model GP-SWXXXDCXXXX(US),IP20 SERIES
Physical dimension L x W x H :  91mmx 40.5mmx 27.5mm
Input voltage 120V~
Input frequency 50/60Hz
Output voltage 3-29V
Output current 10-1200mA
Output Power 6W Max
Special function OCP,SCP
HIPOT Testing 2000Vac/5mA/Min
AC pin type US
Mean time between failures 50,000 HOURS AT FULL LOAD AND 25°C AMBIENT
Application  LED Driver
Safety certification UL 1310:2018 Ed.7;UL Subject 2749:2011 Ed.2;CSA C22.2#223:2015 Ed.3
Safety regulations and
Electromagnetic interference standards
FCC Part 15, Subpart B,Class B ANSI C63.4 2009 IC Regulation ICES-005;lssue 5, Class B ANSI C63.4-2014
Energy efficiency standards VI
Protection index IP20(Indoor/Outdoor use)
Burn-in 100% Full Load Burn in
Operating temperature -20~40℃
